Gigglepin G70001/60 'Pro' Series Twin Motor Top Housing For Warn 8274 And GP Winches

Gigglepin G70001/60 'Pro' Series Twin Motor Top Housing For Warn 8274 And GP Winches

Suitable for M8274 & GP winches

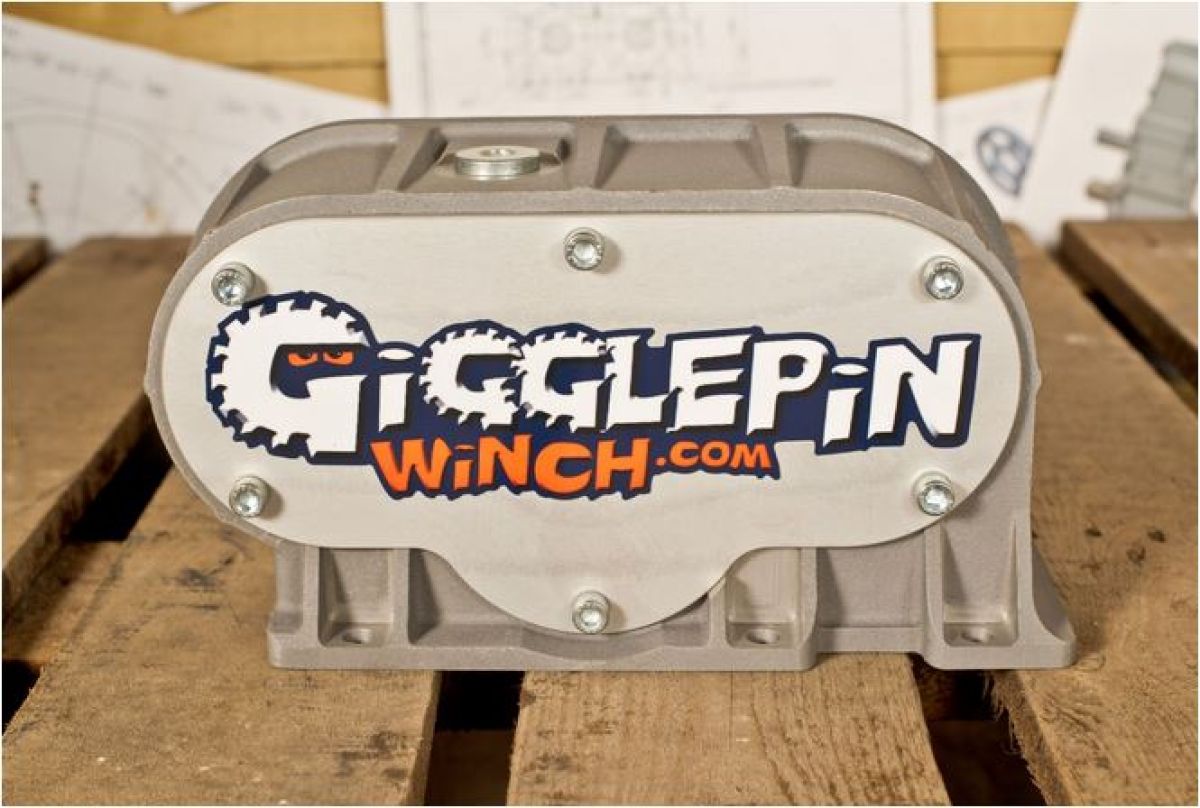

The Gigglepin 4x4 designed top housing is manufactured from sand-cast and heat-treated LM25 aluminium. Does not flex, ensuring accurate, consistent gear meshing. It also has additional fixings to the lower casing.

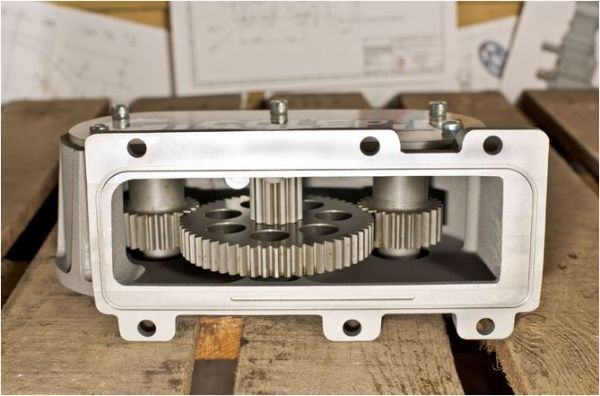

Designed to present a flat front to the winch to protect the motors from impact. The cover plate is machined from billet alloy.  New wider one-piece intermediate gear-set machined from EN36 and case hardened; reduced gear loading, reduced backlash (fewer gears, more precisely machined), with stronger, better wear characteristics. The intermediate shaft is supported by large roller bearings at each end, rather than the original very small internal needle roller bearings. Less drag means more power. Big bearings mean big reliability. New input gears are again machined from EN36 and case hardened, to provide drive from the motors to the intermediate gear set. These gears too are supported by roller bearings, rather than relying on the motor to give the required support, again to ensure proper meshing, less drag and consistent reliability. All gears have new, wider tooth profiles to reduce loading and stop tooth breakage.

The gear material specification has been raised from EN24 to EN36 for increased strength and reliability. The gears are machined accurately for superior meshing, reduced backlash (helping withstand shock-loading) and reduced drag/mechanical losses.

Housings are supplied with a choice of five different ratios (Please select from the options tab above), or ratio kits are available separately and are an easy fit into any Gigglepin Twin motor top housing allowing the user the flexibility to pick and choose their gearing dependant on the terrain or event.

In short the Advantages of the All New Twin Motor Top Housing are: -

• New Lighter stronger casting
• New lighter stronger gear set
• Six super smooth roller bearings
• Narrower design to make assembly and servicing easier
• Larger oil filler plug
• New O ring seal on end plate
• 1/8 BSP breather fitting
• Supplied with bolts
• Available in 5 ratios +15, +25, +40, +50, +60%
• Twice the power, twice the speed.
• Decreased motor effort, saving motors and batteries.
• Superior design and material grades eliminating breakage.
• Sustained line rate on hard pulls.
• Higher maximum load capacity
