Fox Bumpstopkit Factory Series IFP vorne Jeep Wrangler JK 07-18 FOX 883-02-129
VIDEO
mit TÜV
Lieferumfang:
1 Kit
Eine gute Versicherung um Krumme Achsen bei Unvorhergesehenen Hindernissen/Sprüngen zu Vermeiden
Ersetzt die Originalen Schaumstoff Federwegsbegrenzer durch Präzise Einstellbare Hydraulische Begrenzer. Rahmenarbeiten Erforderlich.
In Verbindung mit den 2.0 Performance Series Dämpfern Bekommt man Hohe Reserven um im Gelände bei höheren Geschwindigkeiten nicht durchzuschlagen.
In Verbindung mit den 2.5 Factory Series Internal Bypass Dämpfern erhält man den Ultimativen BAJA Racer hiermit sind Sprünge / Baumstümpfe auf Geländestrecken keine Hindernisse Mehr!
Komplett Überholbar und Abstimmbar bei uns im Hause.

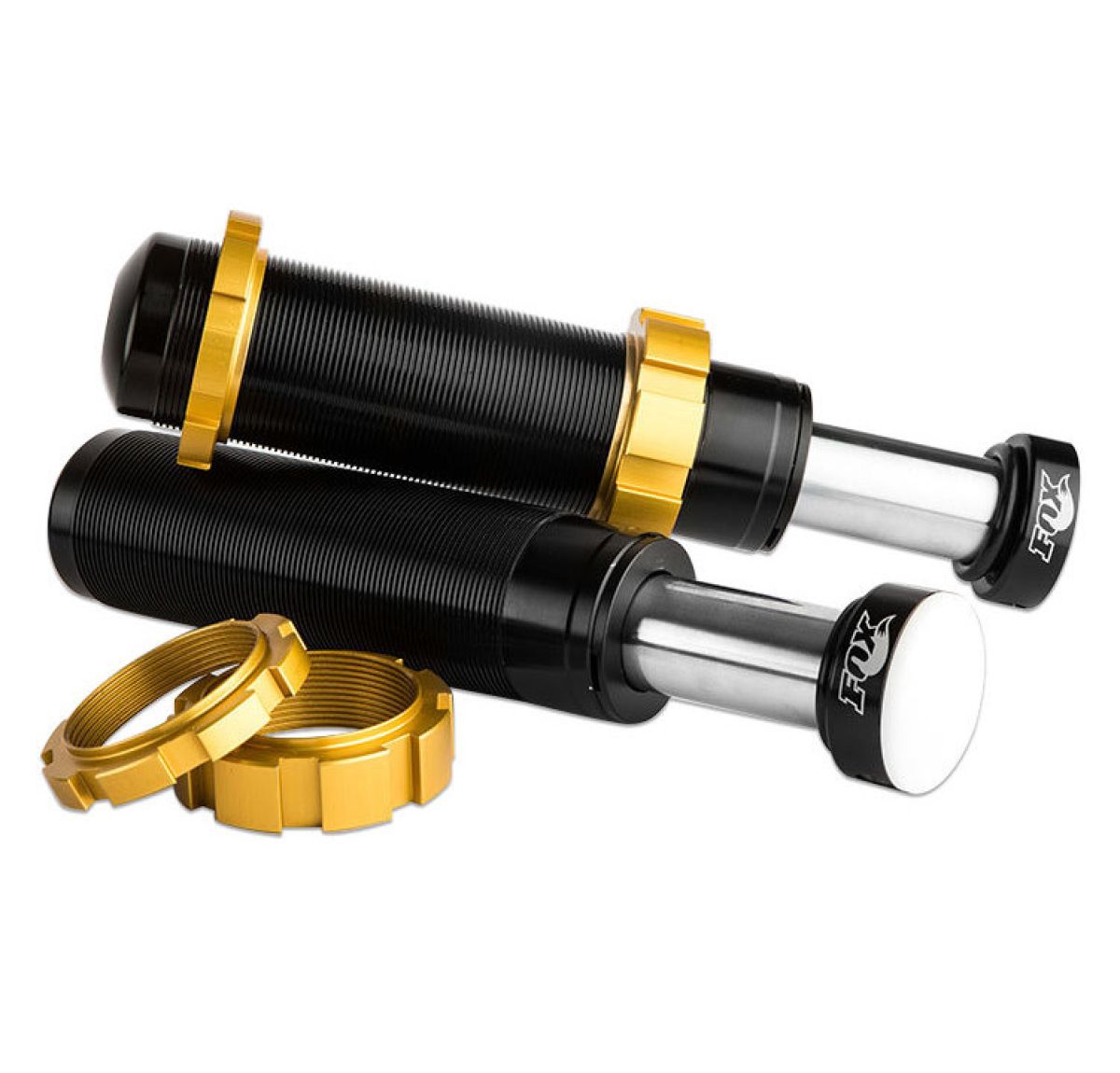

Jeep Wrangler JK 07-18 FOX 883-02-129 Front 2.0 Facotry Series IFP Bump Stop Kit
Inspired by it's off-road racing predecessors, the new Factory Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel.
The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs.
An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs.
The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.
Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.
Body: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
Components: Black anodized, CNC machined 6061-T6 billet aluminum
Pad: Replaceable Delrin® strike pad
Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
Piston: Heavy-duty powdered steel
Valving: Tunable, velocity sensitive de-burred valve shims
Seals: Redundant sealing pack system, main seal, wiper seal, scraper seal
Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
