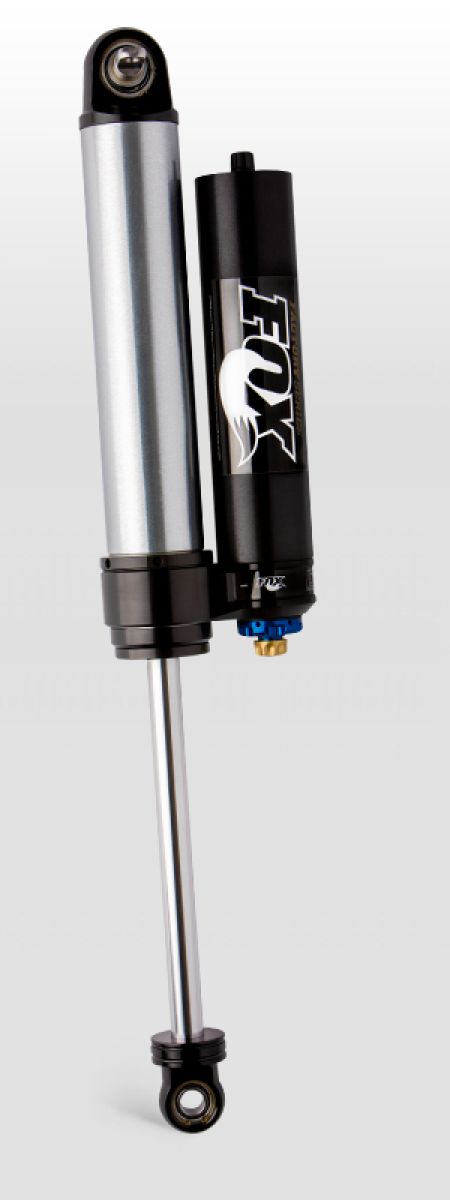

FOX 2.5 Factory Series Internal Bypass Reservoir Shock Set Jeep Wrangler JK 2,5-4" mit Adjuster FOX-883-06-068

Art.Nr.:
FOX-883-06-068
EAN:
FOX-883-06-068
Versandgewicht:
20 kg
2.279,95 EURinkl. MwSt., zzgl. Versand

Lieferzeit:
bis zu 30 Tagen (Ausland abweichend)


passend Jeep Wrangler JK ab BJ. 07-18

Set Vorderachse



Lieferumfang:
2 Stück / 1 Paar

Verwandeln sie ihren Jeep Wrangler JK in einen waschechten BAJA Racer mit diesen massiven Stoßdämpfern bügeln sie über Hindernisse weg als wäre es nichts!

mit der internen Bypass Technologie die erstmals serienmäßig im Ford F150 Raptor eingesetzt wurde bekommen sie ein Gleichzeitig Butterweiches und Steifes Fahrverhalten mit nur einem Stoßdämpfer hin!

Perfekt in kombination mit unserem JKS 3.5" Fahrwerk.


The 2.5 Factory Series Internal Bypass shock delivers patented race-dominating position sensitive damping technology and performance in a hassle free bolt-on kit. Patented, position sensitive internal bypass technology contains internal passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. They allow for a plush predictable ride over normal offroad driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on with your aftermarket long-arm suspension lift kit. The 2.5 Factory Series Internal Bypass shocks utilizing all of the same components form our race winning Trophy Truck shocks with stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities.

Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels.

Specifications:

  • Body - Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies
  • Components - Black anodized 6061-T6 billet aluminum
  • Shaft - 7/8" hard chrome plated stainless steel 17-4 H900
  • Piston - Race-developed high-flow piston design
  • Valving - Application specific valving to maximize offroad performance
  • Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
    Optional high temperature Viton seals
  • Oil - Specially formulated for ultimate performance at variable temperatures
  • Reservoir - External
  • Mounting - Applications available for stock and aftermarket lifts kits
    Teflon-lined, heat-treated, alloy steel spherical bearings
  • SOLD IN PAIRS

Adjustments:

  • Nitrogen pressure
  • Compression valving
  • Rebound valving
  • Dual Speed Compression (DSC) adjuster (883-06-068/883-06-069) only


Part # Model Year Position Lift Travel Extended Length Collapsed Length DSC
Adjuster
FOX-883-02-068 Jeep Wrangler JK (Pair) 07+ Front 2.5-4.0" 10.36" 25.97" 15.61" No
FOX-883-02-069 Jeep Wrangler JK (Pair) 07+ Rear 2.5-4.0" 10.74" 27.86" 17.12" No
FOX-883-06-068 Jeep Wrangler JK (Pair) 10-14 Front 2.5-4.0" 10.36" 25.97" 15.61" Yes
FOX-883-06-069 Jeep Wrangler JK (Pair) 10-14 Rear 2.5-4.0" 10.74" 27.86" 17.12" Yes
